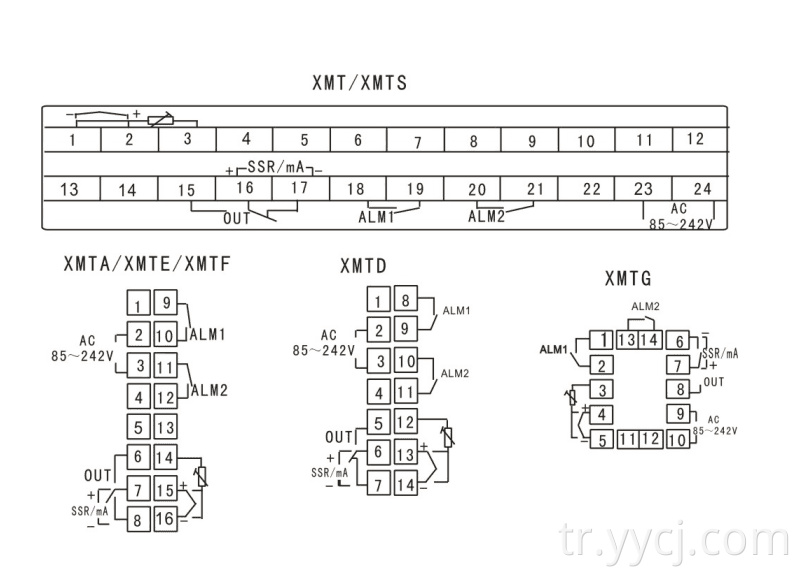

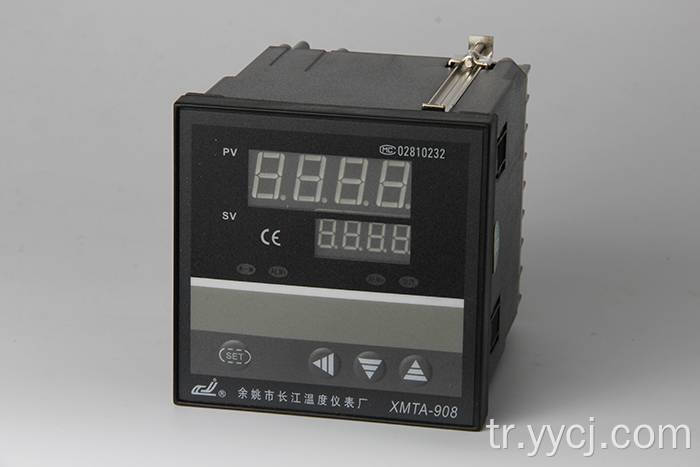

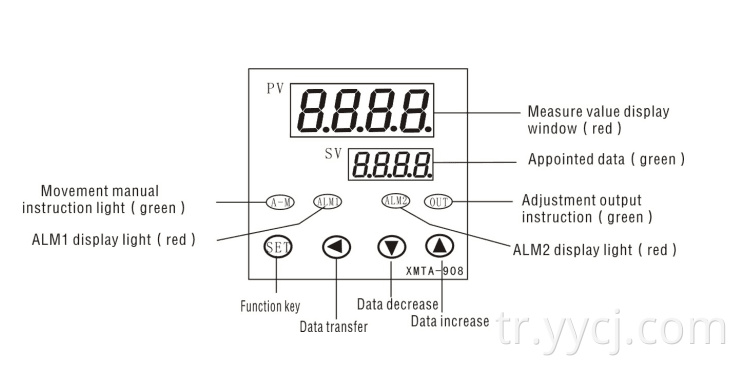

Series

Code

Name

Setting range

Manual

Remarks

0

SP

Appointed data

Determined by P-SL P-SH

－

50.0

1

AL-1

Alarm 1

Determined by P-SL,P-SH when the upper and lower limit range,it is0～50.0 when the upper and lower limit deviation alarm

Alarm 1 setting value

10

2

AL-2

Alarm 2

Determined by P-SL,P-SH when the upper and lower limit range,it is0～50.0 when the upper and lower limit deviation alarm

Alarm 1 setting value

10

3

P

Proportion modulus

0～100

When the P↑,the the proportion function↓

When P=0,the meter is ON/OFF control

8

4

I

Calculus time

0～2000S

240

5

d

differential time

0～200S

30

6

At

Setting itself

ON:open setting inself function

OFF:close setting itself function

Select of setting itself

OFF

7

t

SSR proportion Control period

1～120S

20

8

Hy

Main control by

drop in level

0.1～50.0

Only have meaning when main control output is ON/OFF(P=0)

1.0

9

Hy-1

Alarm 1

drop in level

0.1～50.0

It has use drop in level setting of alarm contact output

1.0

10

Hy-2

Alarm 2

drop in level

0.1～50.0

It has use dropin level setting of alarm contact output

1.0

11

Pb

Sensor error amendment

±20.0

The sensor have deviation can use item to revisal

0

12

FILT

Filt modulus

0～50

20

13

dp

Show accuracy

0～1

0: have radix point,1: have no radix point

14

P-SH

Display the high limit

P-SL～9999

Can set the high limit displaying input signal

400

15

P-SL

Display the low limit

-1999～P-SH

Can set the low limit displaying input signal

0

16

OUTL

Allow exports  min value

0～OUTH

It will no role when highest outputlimit,,manual and position.

200.0

17

OUTH

Allow exports  max value

OUTL～200

It will no role when lowest outputlimit,,manual and position.

0.0

18

ALP1

Alarm1  and output definition

0～4

‘1’:upper limit touch alarm

‘2’:lower limit touch alarm

‘3’:upper windage alarm

‘4’:lower windage alarm

－

19

ALP2

Alarm2  and output definition

0～4

－

20

COOL

System function choice

0～1

‘0’:reverse control

‘1’:positive control

0

21

OPPO

Open power output

0～100

Soft start functionthat meters coefficient after first export of electric power

0

22

LOCK

Code lock

0～50

0- all the parameter can be revised

1- only the sp can be revised

0

23

Sn

Input type

0～70.

24

OP-A

Output type

1～4

1- RLP SSR output mode

2- SSR solid state relay

3- Zero controllable silicon contact signal when it exceed zero output mode

4- Mut controllable silicon phase trigger contact output mode

5- 0~10MA linearity  control electric current output

6- 4~20MA  linearity  control electric current output
